MarS-Doc

MARkdown to Slide with panDOC — Slides as Code

RAYA Christian

2026

Introduction

Welcome to MarS-Doc

MarS-Doc (Markdown to Slide with panDoc)

This tool is a presentation system designed for engineers, developers, and scientists.

It solves the chronic problems of traditional presentations:

  • 🔀 Version control — Plain text files readable by Git.
  • 🎨 Content vs. Form separation — You write the content, the engine handles the style.
  • 🔒 Independence — Generate self-contained or connected HTML archives.

“If it’s not in version control, it doesn’t exist.”

System Requirements

To build this project locally, ensure your environment meets the following specifications:

  • Pandoc 3.8.+ : Required for advanced AST manipulation and latest Reveal.js template support.
  • GNU Make: Used to automate the build process, asset synchronization, and dual-target generation (Online/Offline).
  • Browser-Sync: Allows you to automatically update your slide as you edit it.
graph LR %% Nœuds principaux A["slides.md
(source)"] B["slides.html
(artifact)"] C["Reveal.js
(runtime)"] %% Connexions horizontales A -- "pandoc" --> B B -- "browser" --> C

Build Pipeline

make Commands

# Generate both versions
make

# CDN-dependent version
make online

# Self-contained version
make offline

# Live-reload
make watch

Two distribution modes:

  1. Online (slides_online.html): Uses CDNs for Reveal.js, ECharts, etc. Ideal for keeping the Git repository lightweight.
  2. Offline (slides_offline.html): Embeds the LUA/JS runtime and fonts locally. Perfect for conferences without a reliable internet connection.

Presenter Tools

The Intuitive Toolbar

Look at the bottom left of your screen: a small gear wheel (⚙️) gives you access to a retractable toolbar containing essential functions:

  • ⛶ Toggle Fullscreen: Enable/disable fullscreen mode.
  • 📱 Remote Control: Displays the WebSocket QR Code.
  • ⏱️ Timer: Displays the presentation stopwatch.
  • 🖨️ PDF Print: Launches a clean export of the presentation.
  • ⊞ Overview (O): Zooms out to see all slides at a glance.
  • ✏️ Pen (C): Annotate directly on the current slide.
  • 🂠 Chalkboard (B): Opens an interactive chalkboard.
  • 🧽 Eraser: Clears your annotations.

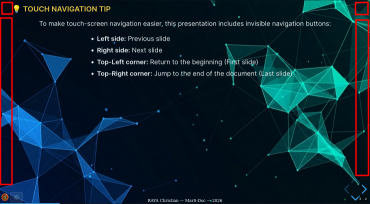

💡 Touch Navigation Tip

To make touch-screen navigation easier, this presentation includes invisible navigation buttons:

  • Left side: Previous slide
  • Right side: Next slide
  • Top-Left corner: Return to the beginning (First slide)
  • Top-Right corner: Jump to the end of the document (Last slide)

Smartphone Remote (WebSocket)

Forget capricious USB clickers.

  1. Click the 📱 icon in the bottom left toolbar.
  2. A QR Code appears on the right side of the screen.
  3. Scan it with your smartphone.
  4. Your phone becomes an instant remote control (Next, Prev, Start, End) connected via WebSocket.

No app to install, everything happens directly in your phone’s browser.

Time Management (Timer)

Markdown Syntax

To define the time allocated to a slide (in seconds), insert this comment anywhere in the section:

   <!-- timing: 10 -->

How it works

  • The global timer (bottom right) activates on the first slide change.
  • It automatically calculates the expected cumulative time.
  • The colored dot indicates your pacing:
  • 🟢 Green: On time or ahead.
  • 🟠 Orange: Slightly behind.
  • 🔴 Red: > 10 seconds behind.

Layouts & Components

Multi-Column Layout

Image 1

Column 1

Image 2

Column 2

Image 3

Column 3

Image 4

Column 4

Image 5

Column 5

Custom Grids and Rows

Use the .rows-full classe combined with background colors
(.bg-blue, .bg-yellow, width=30%, height=35%, etc.) to structure space without writing any HTML:

.bg-green .rounded-tl

.bg-red .rounded-bl

.bg-orange .rounded-tr

.bg-black .rounded-br

Custom Grids and Columns

Use the .cols-full classe combined with background colors
(.bg-blue, .bg-yellow, width=25%, height=30%, etc.) to structure space without writing any HTML:

.bg-green .rounded-tl

.bg-orange

.bg-black .rounded-tr

.bg-green .rounded-bl

.bg-orange

.bg-black .rounded-br

Alpine.js: Alerts & Toggles

The .warning and .info classes automatically generate semantic callouts.

⚠️ Warning: This is a critical alert generated by LUA + Alpine.js.

ℹ️ Information: The toggle component hides text to avoid cluttering the slide.

::: {.toggle label="▶ Show Toggle source code"}
Here is the hidden content!
:::

The Stepper (Guided Workflow)

  • Write: Author your content in plain Markdown.
  • Compile: Run make online or make offline.
  • Present: Open the generated file in any modern browser.
  • Control: Scan the QR Code to navigate via your mobile device.

Data-Viz & Diagrams

CSV File Import

The LUA script directly reads your .csv files and generates the appropriate Pandoc tables on the fly.

Composant Boîtier Fonction principale Statut
LFCN-80+ FV1206 Filtre Passe-Bas (DC - 80 MHz); Tolérance serrée Validé
GALI-39+ SOT-89 Amplificateur RF gain élevé (20 dB @ 1 GHz) En test
BAT15-04W SOT-323 Diode Schottky pour détection de puissance RF À valider
{.csv src="assets/table.csv" sep=";" header="true" align="l,c,l,r" limit=3}
  • The default separator is ; but you can specified de separator with sep=“;”
  • You can display only the first N rows using the ‘limit’ parameter
  • You can control the alignment of the columns using the ‘align’ parameter

Image zoom

Double click on the image to view it in full screen

ECharts: JSON Charts

ECharts: SNP Files

Directly reading your RF data files (.s2p, .s3p, .s4p).

S2P Smith Chart

Plot magnitude in dB

ECharts: SNP Files

Directly reading your RF data files (.s2p, .s3p, .s4p).

S2P Polar Chart

Plot magnitude in linear

ECharts: Gnuplot conversion to echarts.js

Convert Gnuplot scripts (.gnu) in echarts graph.

Polar S-parameters from Gnuplot

XY Gnuplot Script

ECharts: Gnuplot conversion to echarts.js histogram

Convert Gnuplot scripts (.gnu) in echarts graph.

Histogram from Gnuplot

Histogram with Gaussian function from Gnuplot

WaveDrom - Diagrams

Wavedrom in markdown

Support of WaveDrom diagrams

WaveDrom - External File

Include WaveDrom: ./assets/wavedrom.json

Wavedrom in markdown

Support of WaveDrom symbols

Mermaid Diagrams

flowchart TD A([Start]) --> B{Input valid?} B -->|Yes| C[Process data] B -->|No| D[Return error] C --> E{Result OK?} E -->|Yes| F([✅ Done]) E -->|No| G[Log & retry] G --> B D --> F
sequenceDiagram autonumber actor User participant MarS-Doc participant Browser User->>MarS-Doc: make all MarS-Doc-->>Browser: slides_online.html User->>Browser: Opens the presentation Browser->>User: Renders HTML5 + ECharts
gantt title Project Timeline dateFormat YYYY-MM-DD section Research Requirements :done, r1, 2026-01-01, 2026-01-15 State of the art :done, r2, 2026-01-10, 2026-01-25 section Development Architecture :done, d1, 2026-01-20, 2026-02-10 Implementation :active, d2, 2026-02-05, 2026-03-15 Testing : d3, 2026-03-10, 2026-04-01 section Delivery Documentation : v1, 2026-03-25, 2026-04-10 Final review : v2, 2026-04-08, 2026-04-15

2D Navigation Model

Reveal.js organises slides on a 2D grid:

Direction Key Meaning in this deck
→ Right → Next thematic section
↓ Down ↓ Deeper technical detail
← Left ← Previous section
↑ Up ↑ Previous slide (same section)

Tip: press O for the Overview to visualise the full grid at a glance.

Essential Keyboard Shortcuts

Key Mode Description
S Speaker Opens speaker view with notes + timer
O Overview Full 2D grid of all slides
F Fullscreen Hides browser chrome
B Blackout Black screen — refocuses audience
V Pause Pause without leaving the slide
G Jump Jump directly to a slide number
P Previous Previous slide
N Next Next slide
M Menu Table of Contents
Esc Back Exits current mode

Visual Features

Fragments — Step-by-Step Reveal

The most useful fragment classes in practice:

  • .fade-in — soft appearance (default)
  • .fade-in-then-out — appears, then disappears on next click
  • .highlight-red — red highlight without shifting layout
  • .highlight-current-blue — blue on active item, grey on others
  • .fade-out — gradual disappearance

Advanced Sequencing with data-fragment-index

[Text]{.fragment .fade-in data-fragment-index=1}

Live demonstration — multiple elements share the same index:

  • 🔵 Object A — visible between click 1 and click 3
  • 🟢 Object B — appears at click 2

🔴 Object C — grow at click 3, exactly when A disappears

Per-Slide Dynamic Backgrounds

Each slide can declare its own background:

Attribute Example
data-background-color "#1a1a2e"
data-background-image "./assets/bg.png"
data-background-video "./assets/loop.mp4"
data-background-iframe "https://example.com"
data-background-gradient "linear-gradient(...)"

Pandoc syntax — inline attribute on the heading:

## My Section {data-background-color="#1a1a2e"}

Code & Mathematics

Progressive Syntax Highlighting

Thanks to highlight.js and the fix-highlight.lua script, you can animate code line by line.

def demo_pipeline():
    print("🚀 Initializing MarS-Doc...")

    tools = ["Pandoc", "Reveal.js", "ECharts", "Mermaid", "Alpine.js"]
    for tool in tools:
        print(f"  ✅ Loading: {tool}")

data-line-numbers="all|1-2|4|5-6"
  • “all” : all lines highlighted on first click
  • “1-2” : lines 1 and 2 on second click
  • “4” : line 4 on third click
  • “5-6” : lines 5 and 6 on fourth click

MathJax Equations

Native LaTeX rendering is enabled via the --mathjax flag:

Schrödinger equation:

\[i\hbar\frac{\partial}{\partial t} \Psi(\mathbf{r},t) = \hat{H} \Psi(\mathbf{r},t)\]

Fourier transform:

\[\hat{f}(\xi) = \int_{-\infty}^{\infty} f(x)\ e^{-2\pi i x \xi}\,dx\]

End of presentation

Ready to compile!

Your complete, versionable, and interactive presentation environment is now operational.
